1BDC CNC BEAM DRILLING CENTER

BDC Beam Drilling Machine is an economic and small footprint metal working machine

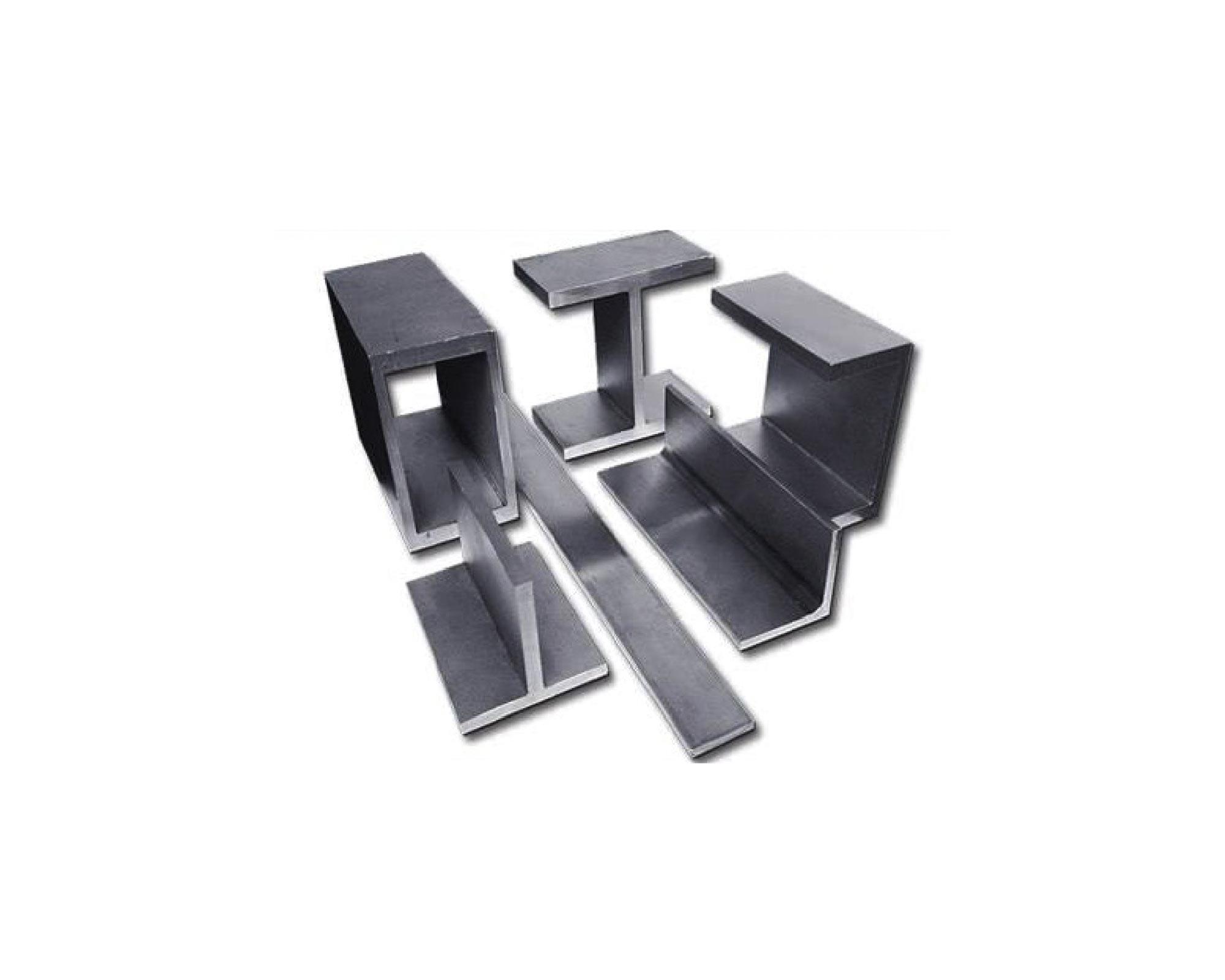

Except standard beams, you can process machine blade, bracket and parts of different shapes with some auxiliary devices

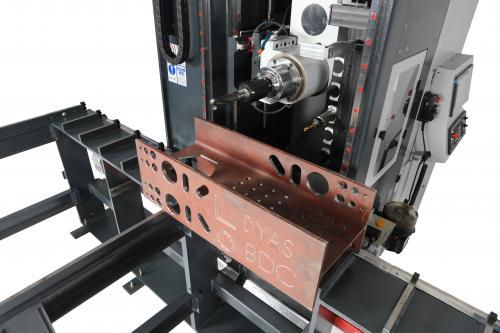

Drilling , tapping , chamfering , layout marking and milling process can be done easily

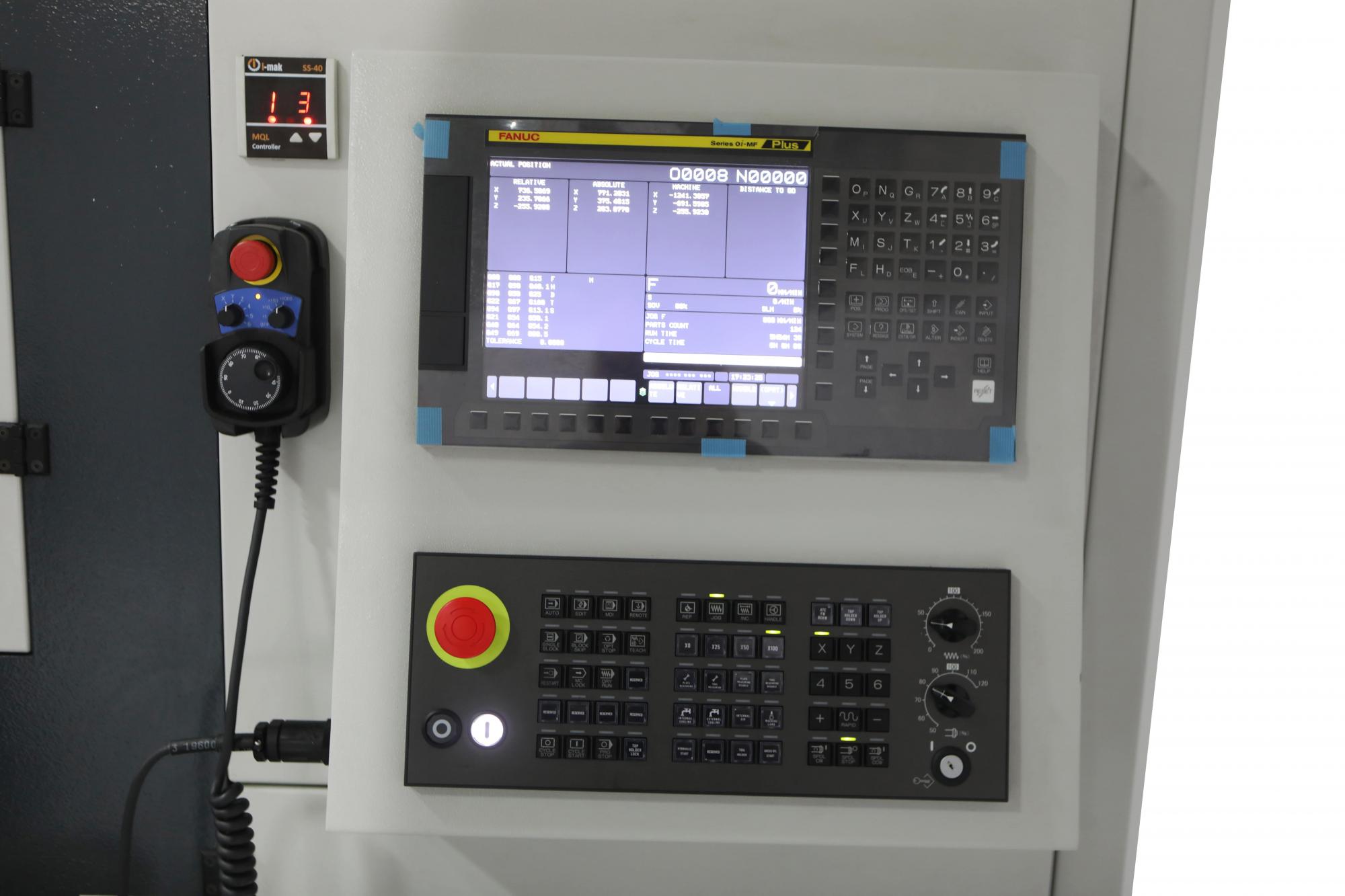

FANUC CNC control system was used in machine and spare parts can be found all around the world
Also to do slotting process , there is inside supporting axis in the machine which can work 250 mm

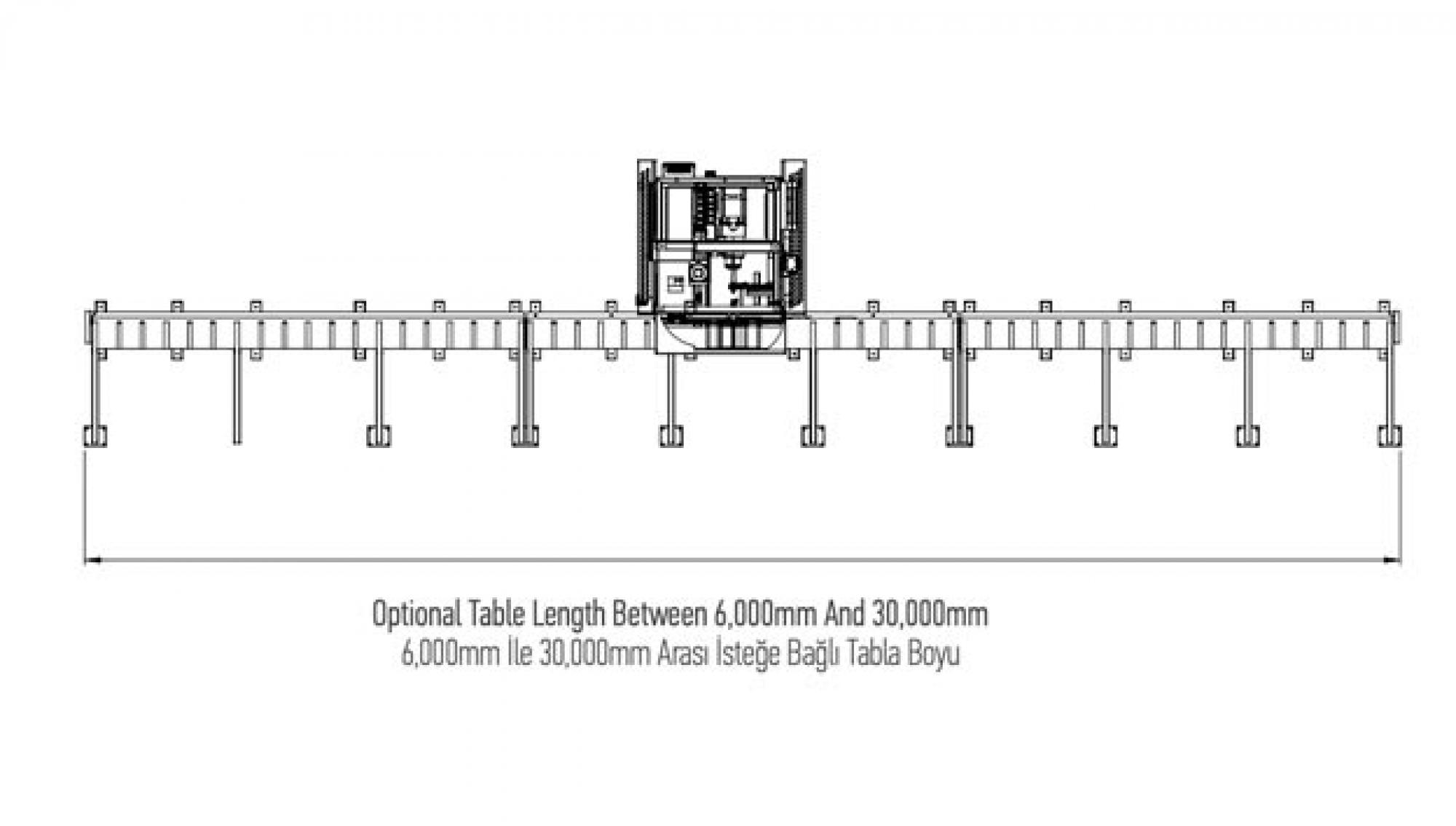

According to your request , machine length can be produced between 6m and 30 m
Linear slides and ball screws are lubricated with automatic central lubrication system and it doesnt need any maintenance
Thanks to eco-friendly MQL system inside and outside of spindle can be cooled for tools

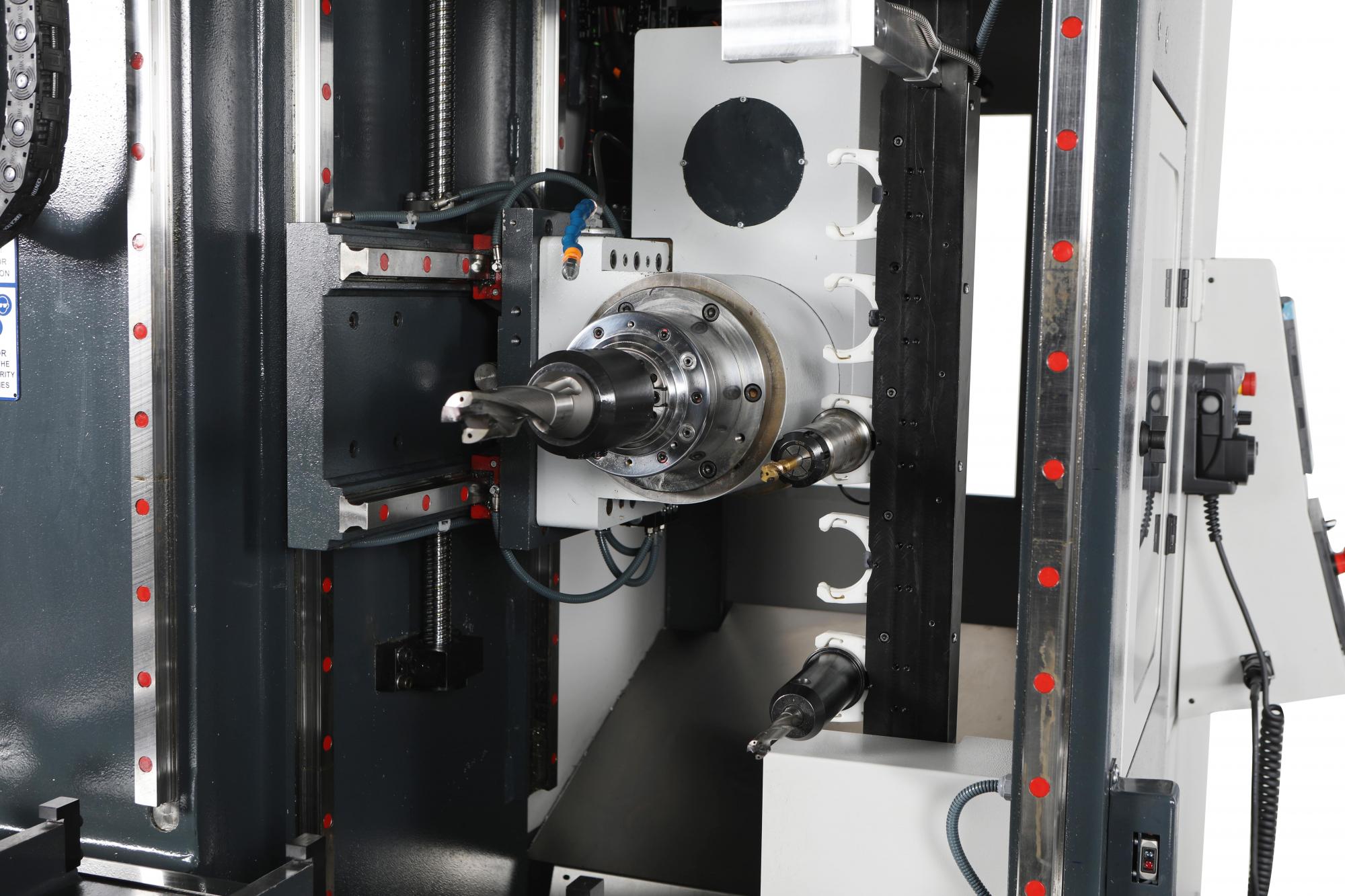

Automatic Tool Changer (ATC)
All measurements are done with RENISHAW brand products

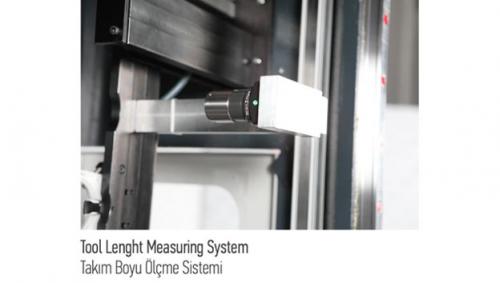

Thanks to tool measurement system , the problems sourced from tool impact can be removed
Thanks to climate system in electrical panel , machine can work even in high temperature
CAM software which makes easier the operator's job
CE certificated

MACHINE TYPE	1BDC-800	1BDC-1200
Control Unit / Kontrol Ünitesi	Fanuc Oi-FP	Fanuc Oi-FP
Working Length / Çalışma Boyu	6/12/18/24/30 meter	6/12/18/24/30 meter
Beam Height / Profil Yüksekliği	50-800 mm	50-1200 mm
Beam Width / profil genişliği	50-800 mm	50-1200 mm
Workbench Height / Çalışma Sehpası Yüksekliği	1045 mm	1045 mm
İnternal Axis Movement / İç Eksen Hareketi	250 mm	250 mm
Machine Length / Uzunluk	2000 mm + Working Length	2000 mm + Working Length
Machine Width / Genişlik	2670 mm	2870 mm
Machine Height / Yükseklik	3900 mm	4200 mm
Machine Weight / Ağırlık	Depends on Size Selection	Depends on Size Selection
Tool Holder / Takım Tutucu	BT40	BT40
Tool Length / Takım Boyu	320 mm Max.	320 mm Max.
Drilling Capacity / Delme Kapasitesi	Ø5 mm / Ø40 mm	Ø5 mm / Ø40 mm
Tapping Capacity / Diş Çekme Kapasitesi Max.	M8 / M27	M8 / M27
Spindle Speed / Spindel Hızı	10-4000 rpm	10-4000 rpm
Spindle Power / Spindel Gücü	15 kW	15 kW
Spindle Torque / Spindel Torku	144 Nm	144 Nm
Total Power / Toplam Güç	45 kW	45 kW
Automatic Tool Changer Capacity / Aotomatik Takım Değiştirme Kapasitesi	5 Pieces	5 Pieces
